Large sieving capacity tumbler screening machine

Tumbler screening machine brief info:

1. Screen of Layer : 1 to 5 layers

2. Diamater : 400 to 2600(mm)

3. Material : Carbon steel, 304 or 316L stainless steel

4. Diamater : 400 to 2600(mm)

5. CAD drawing : Free design by your application site.

6. Customized service : Custom the machine by your need.

7. Sieving precision : Up to 500 Mesh(≥0.028mm)

Tumbler screening machine has advantages of large sieving capacity, high screening efficiency than vibro sieving machines. Especially for Fine powder screening industral apply as food, Chemical and Pharma. GMP standard structures design and manufacturing, ensure the tumbler screen more safe and easy cleaning.

Tumbler Screening Machine Advantages

Reeger machinery tumbler screening machine is currently the most effectient vibro sieving machines (screening accuracy, efficiency, and screen life are 5-10 times that of conventional vibration screens), which meets all fine and ultrafine ranges of powders and particles material, especially suitable for difficult materials screening.

The tumbler screening machine working principle made the product a high-efficiency sieving machine especially for large capacity and high sieving precision screening needs.

Tumbler screener Technical data:

Model	RY1000	RY1200	RY1600	RY2000	RY2200	RY2600
Diameter	1000mm	1200mm	1600mm	2000mm	2200mm	2600mm
Area(M2)	0.71	1.11	1.83	3.05	5.18	5.31
Mesh Size	0.028mm-12mm	0.028mm-12mm	0.028mm-12mm	0.028mm-12mm	0.028mm-12mm	0.028mm-12mm
Layer	1-5	1-5	1-5	1-5	1-5	1-5
Power	1.5KW	1.5KW	3.0KW	4.0KW	4.0KW	5.5KW
Frequency	950	950	950	950	950	950
Net Cleaning	custom	custom	custom	custom	custom	custom

Notes: Tumbler screening machine Screen mesh Net Cleaning can custom according to customer working requirements: you can choose Bouncing ball, Ultrasonic device, Rolling brush or toghther.

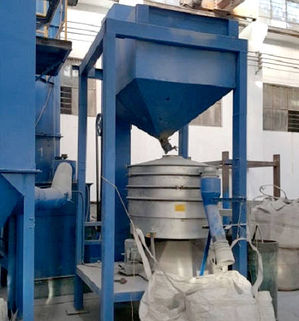

Tumbler screening machine working application show:

Tumbler screening machine advantages:

1. Screening efficiency up to 90%-98%

2. High-efficient screen cleaning device design and will suggest the most suitable and right cleaning systems for your needs. the screen cleaning device system including: 1. silicone rubber ball, 2. ultrasonic cleaning device, 3. brush cleaning. Right screen mesh cleaning system can improve your screening efficiency and capacity.

3. Sealed and dust removal for safe operation and quality sieving materials.

4. Quick-open screen frame locking device ensure the screen change time less. You can also add pneumatic lifting device for faster screen changing for your frequent screen change.

5. Low working noise less than 75db

6.Long sieving work life because of no vibration design principle and low energy consumption.

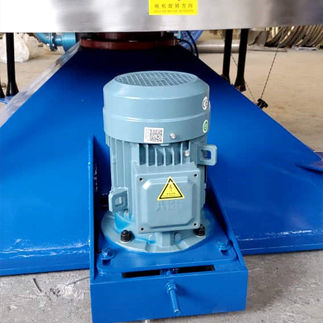

Tumbler screening machine details pictures:

Application ranges of tumbler screening machines：

Tumbler screening machine is widely applied in a variety of sieving industries. For example, the tumbler screen can be used to remove impurities in Food flour or other food powder industries. The chemical industry for solids and liquids separation, Products are widely used in food powder, environmental protection biological insects, dried fruit and vegetable spices, chemically synthesized powder particles, plastics, resins, Chinese and Western medicines, paint coatings, ceramics, metal powders, mineral powders, electronic magnetic materials, paper pulp, environmental protection materials and other industries. to classify light, heavy, small, dry, wet,dusty, liquid, stickly and all kinds of materials for particle sizes sieving or filtering function.

Tumbler screening machine main screening powders:

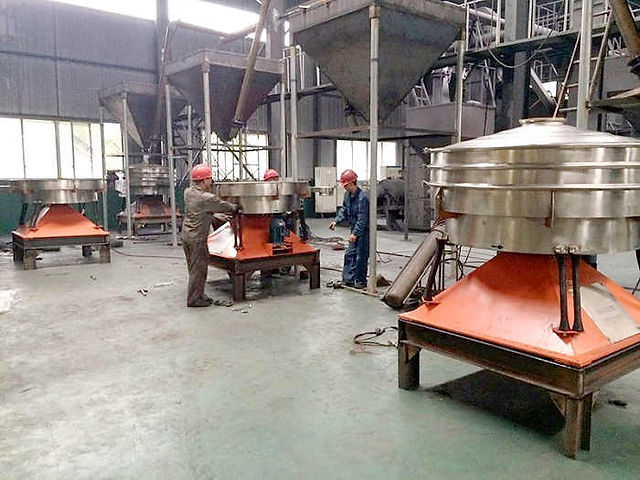

Tumbler screening machine application show:

Tumbler screening machine applications:

Attention:

Free CAD design for your powder screening process ensure your input and output connecting right and easy operating for your working site operation. If you have any questions about the tumbler screening machine , please CONTACT US
