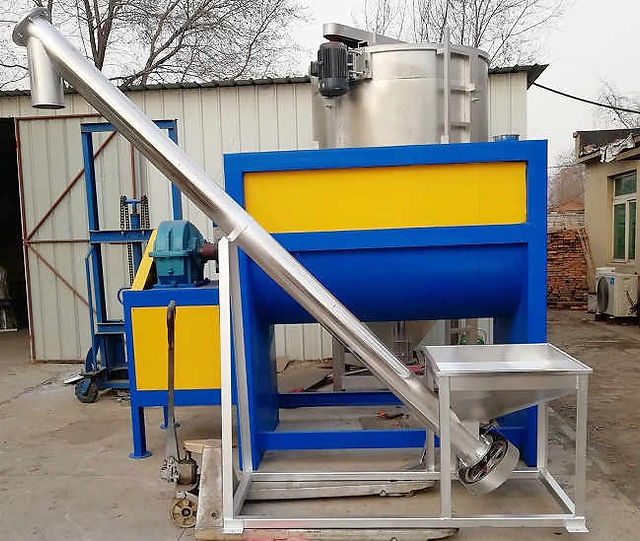

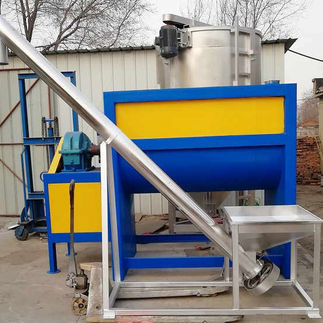

Stainless steel inclined auger screw conveyor

Brief Introduction of inclined auger screw conveyor

Auger Screw conveyor, also called auger screw conveyor, can lift all kinds of powder, granule and

match with packaging machine to accomplish the automatic feeding, and single usage in other situation. Screw conveyor is devided in two types of horizontal conveyor and vertical conveyor, its mainly used for all kinds of powder, particles, small block and loose material transport and vertical lifting.

(1)Conveying powdery material, granular material and small bulk material, such as cement, coal powder, soda ash, grain, chemical fertilizer, ash, sand, coke, dry milk powder, salt, soybean powder etc.

(2)In general, the working environment temperature is between -30 and 50°c, and the temperature of materials conveyed is between -20 and 200°c.

Auger screw conveyor advantages:

1. Using double electric motors : feeding motor & vibrating motor, separately controlled.

2. Product funnel is design to be adjustable vibrate, which lead to avoid product blocking and improve the adaptation of different products.

3. Product funnel can separate from the tube for easy assembly.

4. Special anti-dust design to protect bearing from dust.

5. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassemble for washing.

6. Deal for conveying dry to semi-fluid bulk materials - free flowing to sluggish

7. Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical

8. Efficiently distributes bulk materials to various locations using multiple inlet and discharge points

9. Totally enclosed for dusty, corrosive or hazardous environments

Features of pipe inclined auger screw conveyor

1). High conveying capacity, safe and reliable operation.

2). Good adaptability and long service life.

3). Small size and rapid rotary speed, which ensures rapid and average conveying.

4). Good sealing quality and rigidity. The outer casing is made of seamless steel pipes, and the end caps are connected with flanges.

Attention:

1)Screw conveyor is not suitable for conveying perishable, sticky or easy agglomerating materials.

2)Please let us know the details of conveyed material,the capacity and the details about machine's working environment to choose the suitable model for you.
