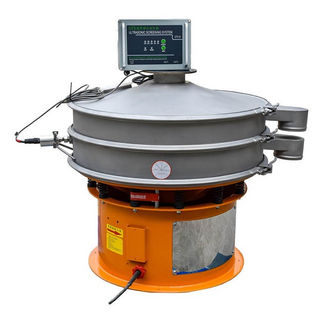

Circular vibrating screen machine

Circular vibrating screen brief features:

·Applications: Salt, Sugar, Spices, coffee Beans, Starch Powder, Chemicals etc.

·Diameter of screen(mm): 400-2200

·Sieving precision: 500 mesh

· Layer:1-5

·Power(KW): 0.25-4

·Voltage for: 110V 220V 240V 380V 415V 450 V and 550V

Powder sieving circular vibrating screen machine is a high-precision vibro screening and filtering machine for sieving powders and liquids. It is a high accuracy fine powder sieving machinery and is suitable for particle(granule) powder and mucus material sieving.

Vibrating screen machine working principles:

The vibrating screen machine vibrating power is from the vertical vibrating motor's working , There are two eccentric blocks on the vibrating motor's upper and down. The eccentric blocks mainly make cubic element movement (horizonal, up-down, and tilting) when the motor working. You can adjust the vibrating screen machine By changing the eccentric block's included angle (the upper and down) and numbers, the track that material moves on the mesh, will be changed So that the screening target will be realized.

This is really important when you received the circular vibrating sieve machine, you need read the manual guide carefully and adjust the vibrating motor to achieve the most suitable powder screening working results.

Circular vibrating screen machine main types show:

Circular vibrating screen machine Features

1. Easy to replace the sieve mesh and only need to take 3-5 min;

2. No plugging ,the sieving can be up to 500um or 0.028mm;

3. The sieve can be up to max 5 layers and get 6 size grading;

4. easy to install and move.With a small volume and the light weight.

5. Special mesh frame design ensure long sieving life for mesh, and the screen mesh is easy to

6. change and clean.

7. All- closed design, no dust pollution

8. Good enclose and little noise;

Vibrating screen machine details show:

Vibrating screen machine Application show:

Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.

Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.

Food industry: sugar, salt, alkali, flour powder, nut powder, whey protein powder , maltodextrin , flavors , sucralose , xanthan gum, soy lecithin ,farina, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.

Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc

The outlet's location can be adjusted to anywhere you need, it is very easy to form producing line. We offer connecting drawing for you.

Circular vibrating screen machine feeding by vacuum conveyor equipment:

How To Choose Suitable circular vibrating screen Model?

If you have ever used the circular vibrating screen machine, kindly pls tell us its DIAMETER, LAYERS, MESH SIZES, MATERIALS.

If you never use the machine until now, pls offer us the info as below:

1. Handling material? Bulk density?

2. Will you do a separation or dust-removal?

3. Production Capacity per hour(KG/H)?

4. How many Layers do you need? Mesh size of each layer?

5. Material of Construction material?(Stainless steel or Mild Steel)

6. Voltage(V), Frequency(Hz), Phase(P)?
